The Balance of Nature and Your Boat

Nature likes balance and harmony. When things are misaligned and out of sync, they don’t function properly. Just think about what happens when a cold air mass meets a warm air mass—the result can be storms, wind, and damage. Once balance is restored, we return to normal.

The same principle applies to your boat in saltwater. Saltwater acts as an electrolyte, essentially turning your boat into a floating battery. An electrolyte is a substance that, when dissolved in water, conducts electricity. Saltwater consists of sodium chloride, sulfate, magnesium, calcium, potassium, and other trace elements.

The flow of electrons in this environment can create issues that, if left unchecked, can lead to serious damage. While both stray current electrolysis and galvanic corrosion involve electrical processes, they have distinct causes and mechanisms.

---

Understanding Electrical Reactions

To quickly review:

• An atom is the smallest unit of an element, consisting of a nucleus surrounded by electrons.
• A molecule is a group of atoms bonded together.
• An ion is an atom or molecule that has gained or lost electrons, acquiring an electrical charge.

Anodes (-) and cathodes (+) facilitate the movement of electrons, which is key to understanding corrosion in marine environments.

“Losing electrons means corrosion.”

To understand this better, we need to examine the Galvanic Series.

---

The Galvanic Series and Corrosion

The Galvanic Series ranks metals by their electrical potential in an electrolyte:

• Most susceptible to corrosion: Magnesium (top of the chart)
• Least susceptible to corrosion: Platinum (bottom of the chart)

Since corrosion occurs at the anode (-), sacrificial anodes are used to corrode first, protecting critical metal components. Regular inspections during seasonal haul-outs can help detect and prevent excessive wear.

---

Electrolysis

What is Electrolysis?

Electrolysis, also known as stray current corrosion, occurs when an external electrical current (from faulty wiring or equipment) interacts with metal parts in saltwater, accelerating corrosion.

“Electrolysis is not a naturally occurring process. It is driven by an external electrical current.”

If left unchecked, electrolysis can rapidly destroy metal components and cause catastrophic failure.

---

Galvanic Corrosion

What is Galvanic Corrosion?

Unlike electrolysis, galvanic corrosion is a natural electrochemical process that occurs when two dissimilar metals come into contact in an electrolyte (saltwater or bilge water).

• The less noble metal (anode) loses electrons and corrodes.
• The more noble metal (cathode) gains electrons and is protected.
• The greater the difference between metals in the Galvanic Series, the faster the corrosion rate.

---

Preventive Measures

Regular Maintenance is Key

The first line of defense against electrolysis and galvanic corrosion is preventive maintenance. If you have a newer boat, your bonding system is crucial in maintaining electrical balance. Older boats showing signs of increased corrosion should be inspected by a certified marine electrician.

Shore Power Hazards

A faulty shore power outlet can introduce damaging DC current into your electrical system, increasing corrosion risk. Galvanic isolators can prevent this by allowing current to flow in only one direction while maintaining a proper ground.

“Your neighbor’s boat could be leaking unwanted current into the water, affecting your vessel.”

If you suspect shore power issues, notify your marina manager immediately and have an expert inspect the system.

---

Sacrificial Anodes: The First Line of Defense

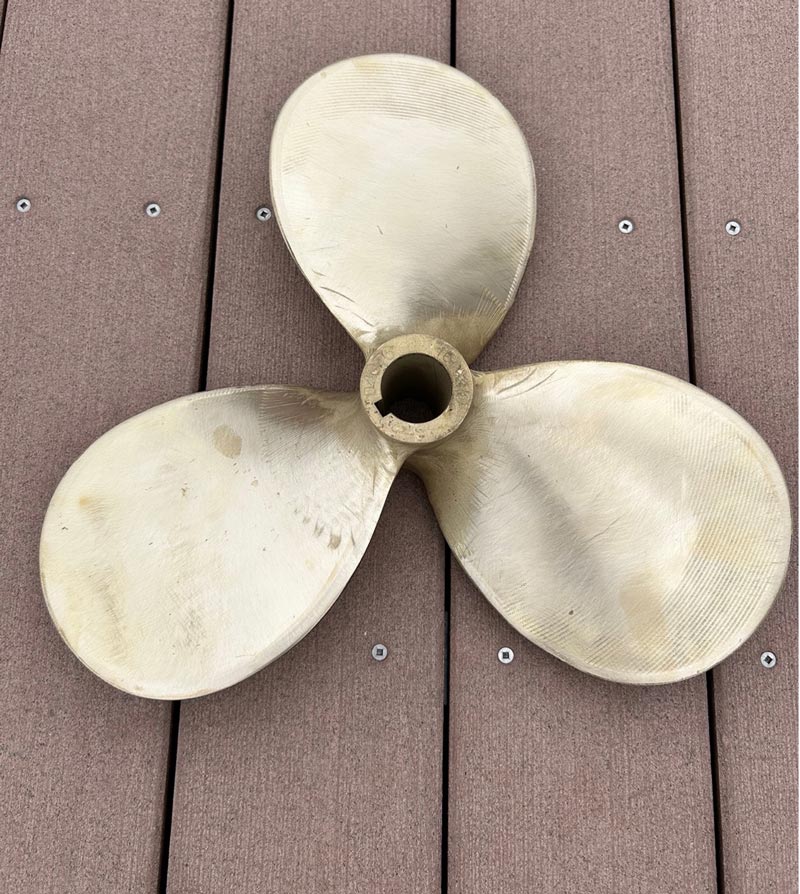

Sacrificial anodes protect underwater metal components by corroding before vital parts like shafts, props, trim tabs, and rudders.

• Never paint sacrificial anodes.
• Use only anodes that meet Mil Spec standards.
• Ensure zinc anodes are free from contamination for maximum effectiveness.

“If your sacrificial anodes are depleting too quickly, it may indicate a larger problem.”

Performing a hull potential test with a specialized meter can ensure proper protection levels.

---

Galvanic Isolators and Advanced Protection

For enhanced protection against stray current, consider using:

• A mid-grade galvanic isolator with a large capacitor for AC and DC protection.
• A high-end isolation transformer for maximum safety.

“A galvanic isolator protects your boat from stray currents caused by other boats plugged into the same shore power.”

---

Conclusion

Like everything aboard your boat—whether it’s a quad-powered center console, a sportfishing boat, or a family day-tripper—your electrical system must be in good condition.

Essential Checks for Corrosion Prevention:

✔ Ensure your electrical system is properly bonded. ✔ Inspect sacrificial anodes regularly—replace when more than 50% depleted. ✔ Monitor your marina for stray currents. ✔ Use galvanic isolators or isolation transformers if needed.

“Corrosion is an unavoidable reality in the marine environment, but proactive maintenance and proper precautions can significantly extend the life of your vessel.”

---
